U.S. producers pulled 113.5 Bcf/d out of the ground in 2024, and the EIA projects that climbing past 122 Bcf/d by 2027. Yet most people, including many investors evaluating oil and gas deals, have never seen what actually happens between "we found gas here" and "gas is flowing to a pipeline."
This guide breaks down the mechanics: the stages, the equipment, and the techniques that determine whether a well becomes a productive asset or a costly hole in the ground.
TL;DR
- Every well moves through five stages: site prep, drilling, casing/cementing, completion, and production
- Horizontal drilling plus hydraulic fracturing unlocked the U.S. shale gas boom
- Bit choice (roller cone, PDC, hybrid) and drilling mud drive both speed and cost
- Geology—not preference—decides onshore vs. offshore and vertical vs. horizontal
- Operator skill in geological targeting outweighs headline production numbers
What Is Natural Gas Drilling?
Natural gas drilling is the engineering process of boring a wellbore down to a gas-bearing rock formation using a rig, drill string, and cutting bit. Drilling creates the physical path to the reservoir. Production and gathering manage the ongoing flow once that path exists.
Gas doesn't just sit in open caverns waiting to be tapped. It's trapped in porous rock or tight shale, and reaching it often requires both a bored path and a stimulation step to get it flowing at commercial rates.
Why drilling still matters despite renewables growth:
- Natural gas is a reliable baseload fuel, unlike intermittent wind or solar
- It's widely classified as a "bridge fuel" toward lower-carbon power generation
- AI data centers are projected to consume 6.7% to 12% of U.S. electricity by 2028, up from 4.4% in 2023
- New wells must be drilled to meet that incremental power demand

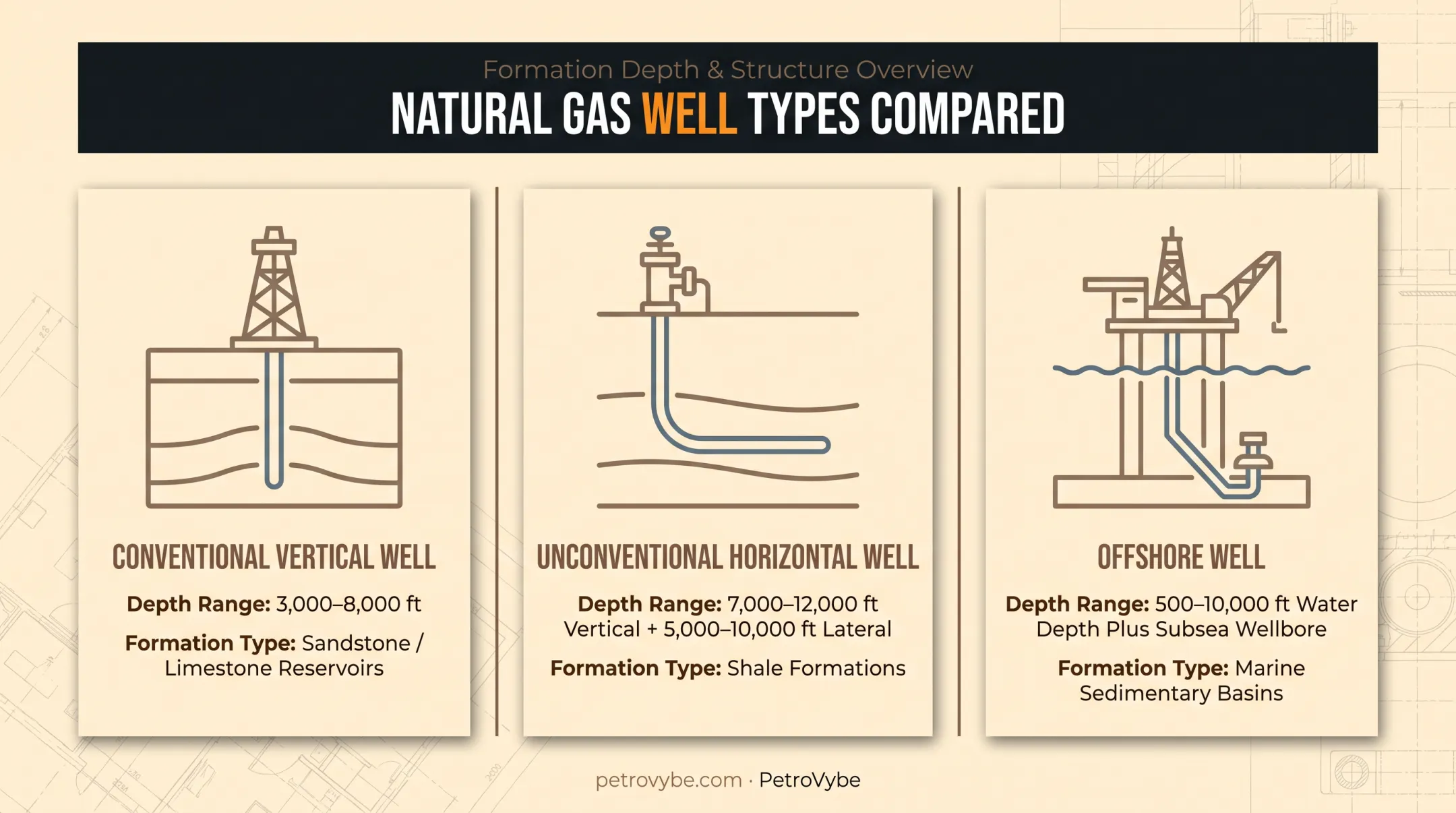

Three broad well types exist, each with different equipment, depth, and budget needs:
- Conventional vertical wells for older, simpler reservoirs
- Unconventional horizontal wells in shale, which require stimulation
- Offshore wells in deepwater, which need specialized platforms
How Does Natural Gas Drilling Work?
Drilling unfolds as a defined sequence. Each stage protects safety and maximizes recovery.
Site Preparation and Initiation
Before a bit ever touches rock, geologists study seismic data and production history to pick a location. Only then does permitting begin.
The work is planned and permit-based, and it takes time. It involves:
- Pad construction and access road building
- Rig mobilization, known in the field as "rigging up"
- Permit filing (in Texas, this means Form W-1 through the Railroad Commission)
Common bottlenecks:
- Permitting delays — Texas gives operators just 2 years from permit approval to spud, with no extensions for amendments
- Land and mineral rights negotiations, which can stall a project for months
Core Drilling Operation

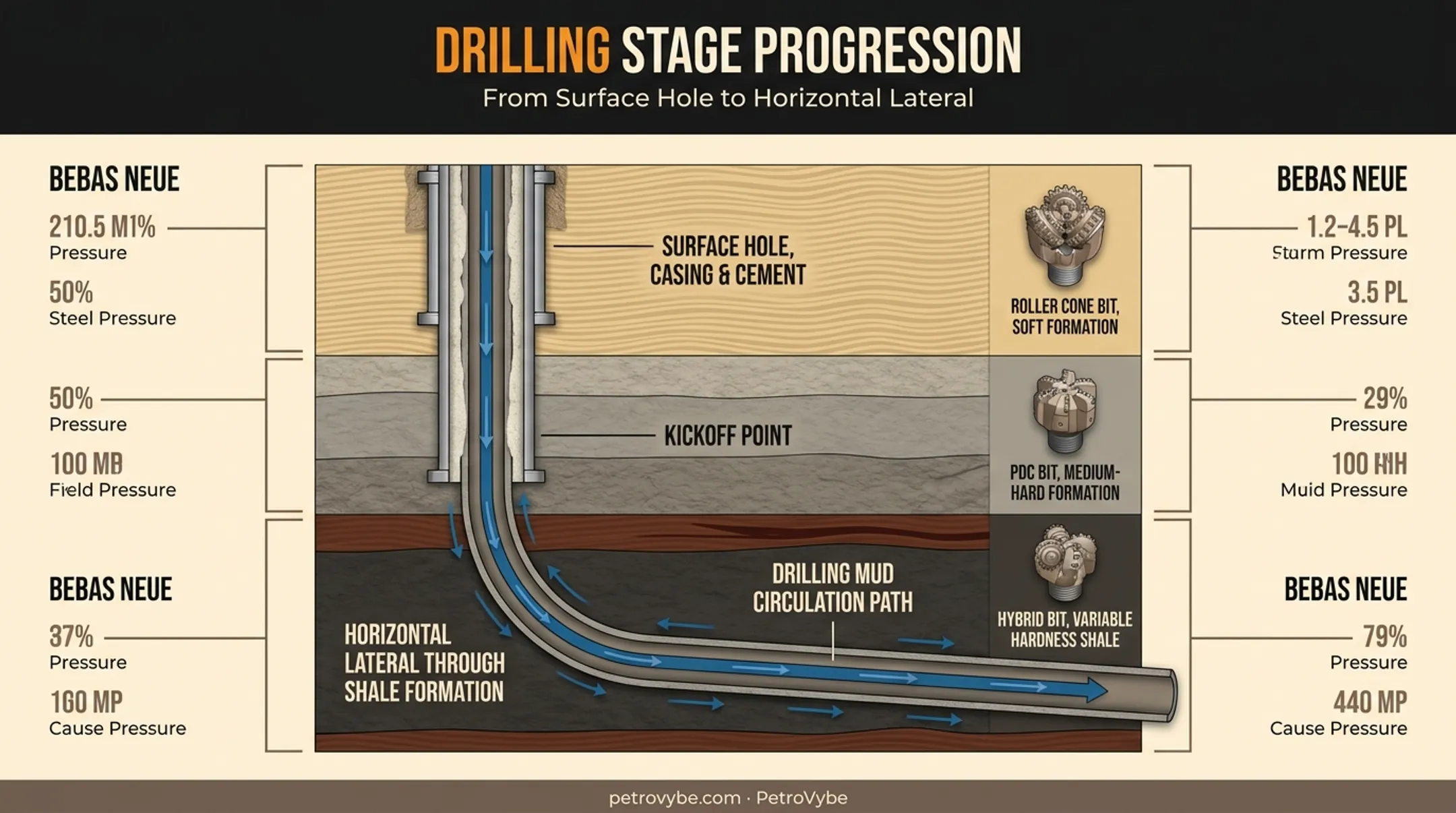

"Spudding in" marks the real start. A wide-diameter bit drills the surface hole, sometimes several thousand feet deep, and steel casing gets cemented in place to seal off freshwater aquifers.
Once the well reaches a set vertical depth, directional drilling takes over. The bit curves and steers horizontally through the gas-bearing shale layer — modern Permian laterals now average roughly 10,500 feet, up 58% since 2015 API.
Drilling mud does three jobs simultaneously:
- Cools and lubricates the bit
- Carries rock cuttings up to the surface
- Controls downhole pressure to keep the borehole stable
Bit selection changes based on rock hardness:
- Roller cone bits — durable, cost-effective in hard, abrasive rock
- PDC bits — longer life, smoother holes, better in soft-to-medium formations
- Hybrid bits — combine both for mixed formations
Rate of penetration (ROP) is what separates efficient operators from expensive ones. One Marcellus/Utica project hit peak ROP over 1,000 ft/hr and averaged above 375 ft/hr across the horizontal section American Oil & Gas Reporter. Higher ROP cuts drilling days and cost per well.
Well Control and Casing
Casing strings and cement bonds keep the wellbore stable and isolate rock layers under different pressures. Texas regulation requires production casing to be cemented at least 200 feet above the next shallower casing shoe.
The blowout preventer (BOP) sits on top of the casing head before drilling resumes past the surface hole. It's the mechanical safeguard that shuts the well in if pressure spikes uncontrollably.
Why this stage can't be rushed: A casing failure or pressure control lapse doesn't just cost money in non-productive time — it can trigger an environmental incident that shuts a project down entirely.
Completion and Output
Completion is where the well starts earning its keep. Crews perforate the casing in the target zone, then install production tubing and wellhead equipment.

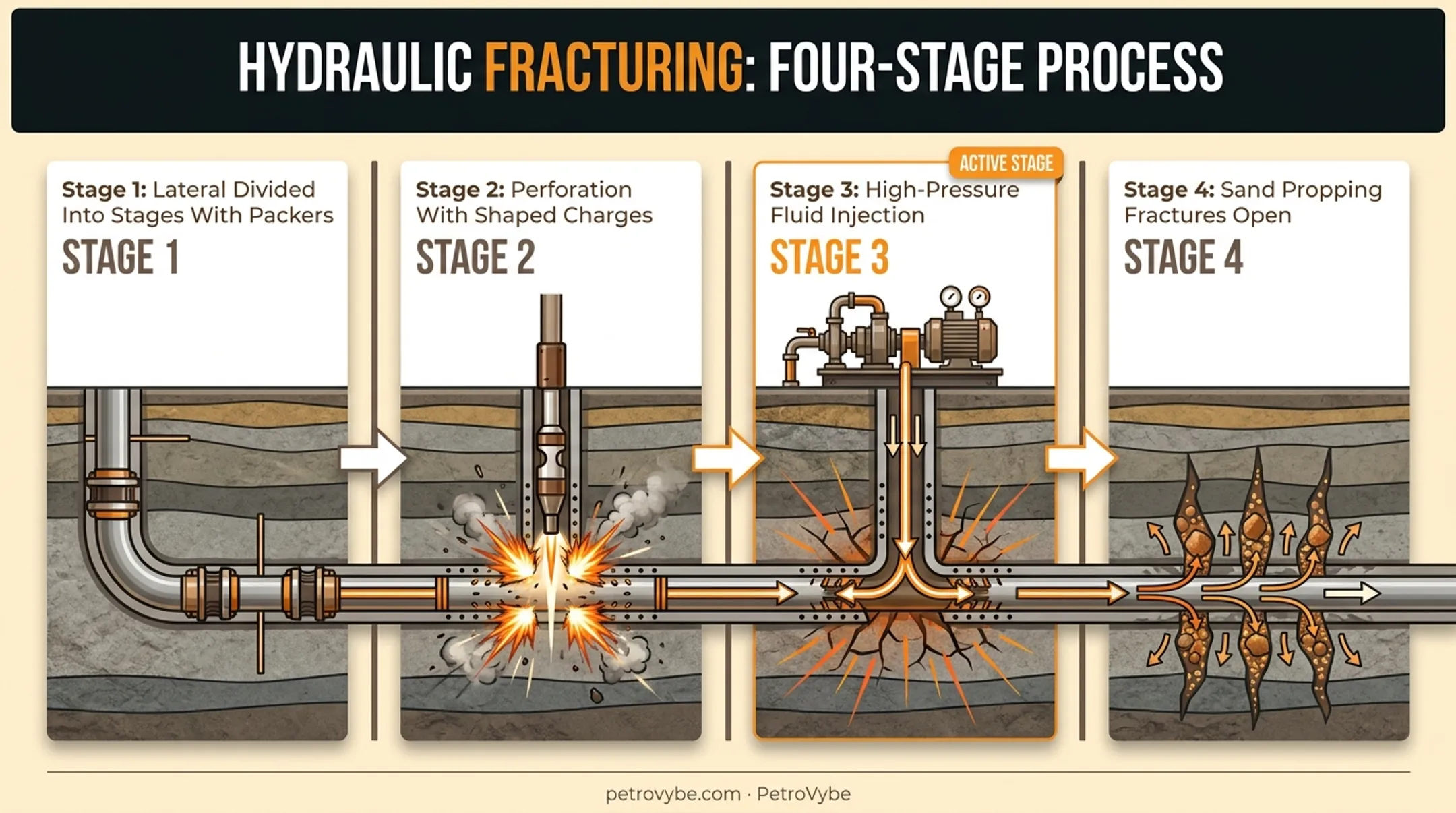

For unconventional wells, hydraulic fracturing follows as a separate stimulation step:
- The lateral is divided into stages using mechanical packers
- Each stage is perforated with small shaped charges
- Fracturing fluid (mostly water, sand, and a small percentage of chemicals) is pumped in at high pressure
- Sand props the fractures open so gas can flow to the wellbore
From there, gas moves to gathering lines, processing facilities, and eventually pipelines.
A weak completion underperforms from day one and can drag down the production curve for years. That long-run decline is what determines whether the well pays out as modeled.
Where Natural Gas Drilling Is Used
Two operating environments dominate U.S. gas development:
Onshore drilling uses pad-based land rigs across basins like East Texas, the Gulf Coast, and Appalachia. It's cheaper, faster to mobilize, and represents the vast majority of U.S. gas activity.

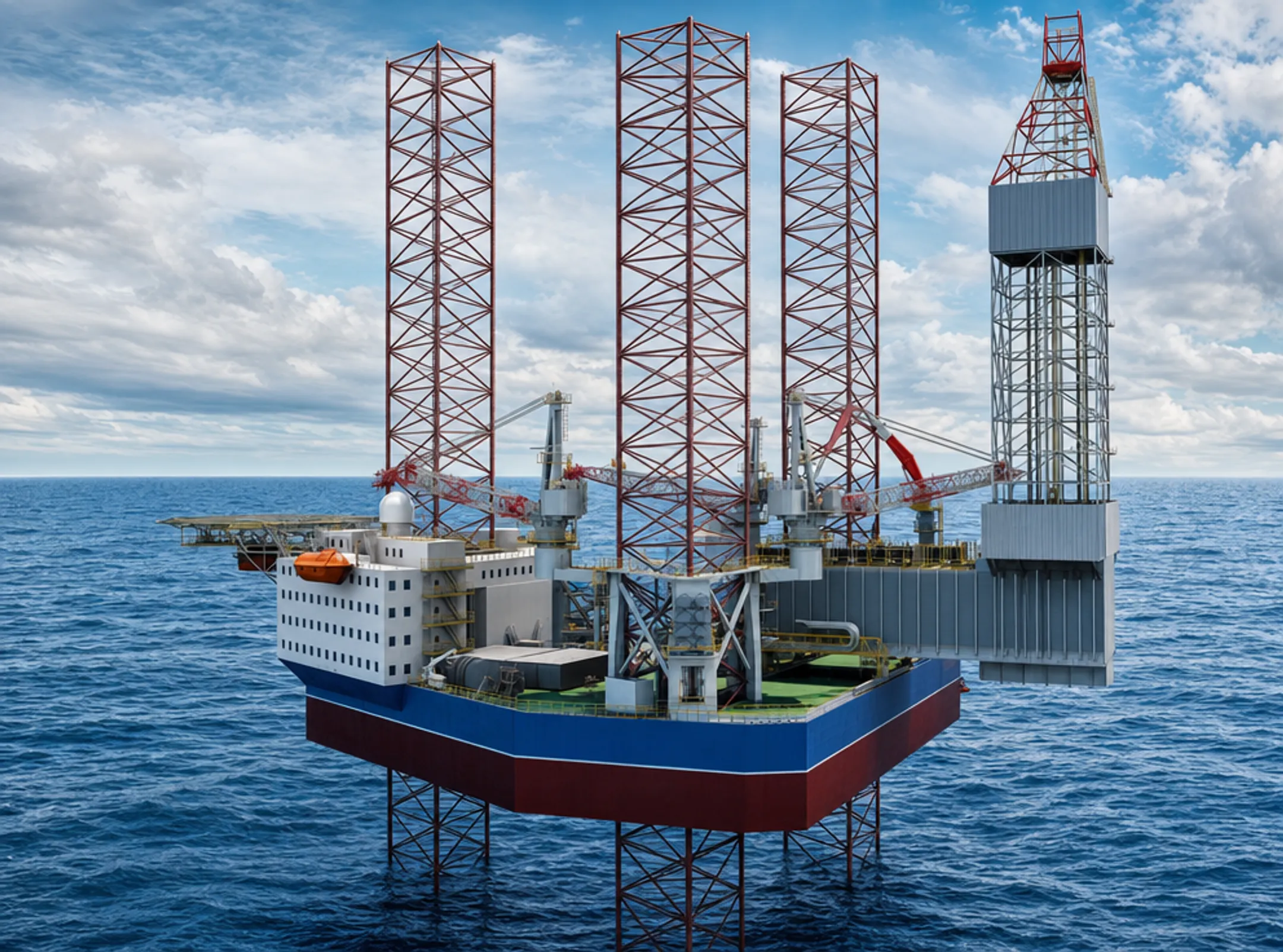

Offshore drilling requires specialized platforms:
| Rig Type | Best For | Depth Capability |
|---|---|---|
| Jack-up rig | Shallow Gulf shelf waters | Up to ~550 ft |
| Semisubmersible | Deepwater, harsh environments | Variable, deep to ultra-deep |
| Drillship | Ultra-deepwater | 7,500–12,000 ft water depth |
Beyond the rig environment, reservoir geology decides the well design. Horizontal drilling dominates tight shale formations where gas won't flow without a long lateral and stimulation. Vertical wells still suit conventional sandstone or carbonate reservoirs with higher permeability.
Why This Matters for Natural Gas Investors
Headline production numbers tell you almost nothing about whether an operator actually knows what they're doing. Drilling technique and geological targeting are where the real risk lives. What separates disciplined operators from the rest:
- Rigorous geological targeting backed by experienced geophysicists reduces dry-hole risk before a single dollar gets spent on a rig
- Independent engineering validation of reserves adds a layer of accountability beyond an operator's own projections
- Benchmarking new prospects against nearby producing wells gives a real-world sanity check on decline-curve assumptions PetroVybe applies this framework directly. The company's Chief Geophysicist, Michael Stamatedes, brings a documented 75.2% career hit rate on profitable location selection, built over 48 years including a run at ExxonMobil — well above the sub-40% industry average. PetroVybe's development work spans roughly 400 acquired legacy wells and 57+ planned wells across a 58,000-acre position in the Gulf Coast Basin's Lavaca County, Texas. A $48 million third-party PV-09 reserve valuation supports that position. That combination of technical leadership plus independent validation gives accredited investors a clearer window into how drilling decisions translate into long-term asset value, rather than trusting a pitch deck alone.
Conclusion
Natural gas drilling is a precise, multi-stage engineering process where every decision, from bit selection to cement bonds, compounds into the final production number. Technique and technology selection determine whether a well pays back or falls short. Whether you're watching this industry from the sidelines or evaluating a development opportunity as an accredited investor, understanding these mechanics gives you a sharper lens for judging what actually drives long-term returns.
Frequently Asked Questions
Can you drill for natural gas?
Not without specialized equipment, engineering expertise, significant capital, and strict regulatory permits. Licensed operators handle this work; it's not a DIY or small-scale undertaking.
How deep do you have to drill to hit natural gas?
Depth varies widely by basin. Haynesville shale sits over 10,000 feet below the surface, while Permian laterals run around 10,500 feet horizontally after reaching target depth vertically.
How long does it take to drill a natural gas well?
Modern horizontal shale wells typically take several weeks for the drilling phase alone, with completion adding more time. Total project timelines depend heavily on depth, formation, and well design.
What is the difference between vertical and horizontal drilling?
Vertical wells drill straight down into the target formation. Horizontal wells curve after reaching depth and travel laterally through the gas-bearing rock, exposing far more reservoir per well.
Is hydraulic fracturing the same as drilling?
No. Drilling creates the wellbore itself. Fracking is a separate stimulation technique performed afterward to free gas trapped in low-permeability rock.
How does natural gas drilling impact the environment?
Regulatory safeguards like cemented casing strings and blowout preventers protect groundwater and prevent uncontrolled releases. Federal methane rules also limit emissions from active operations.
